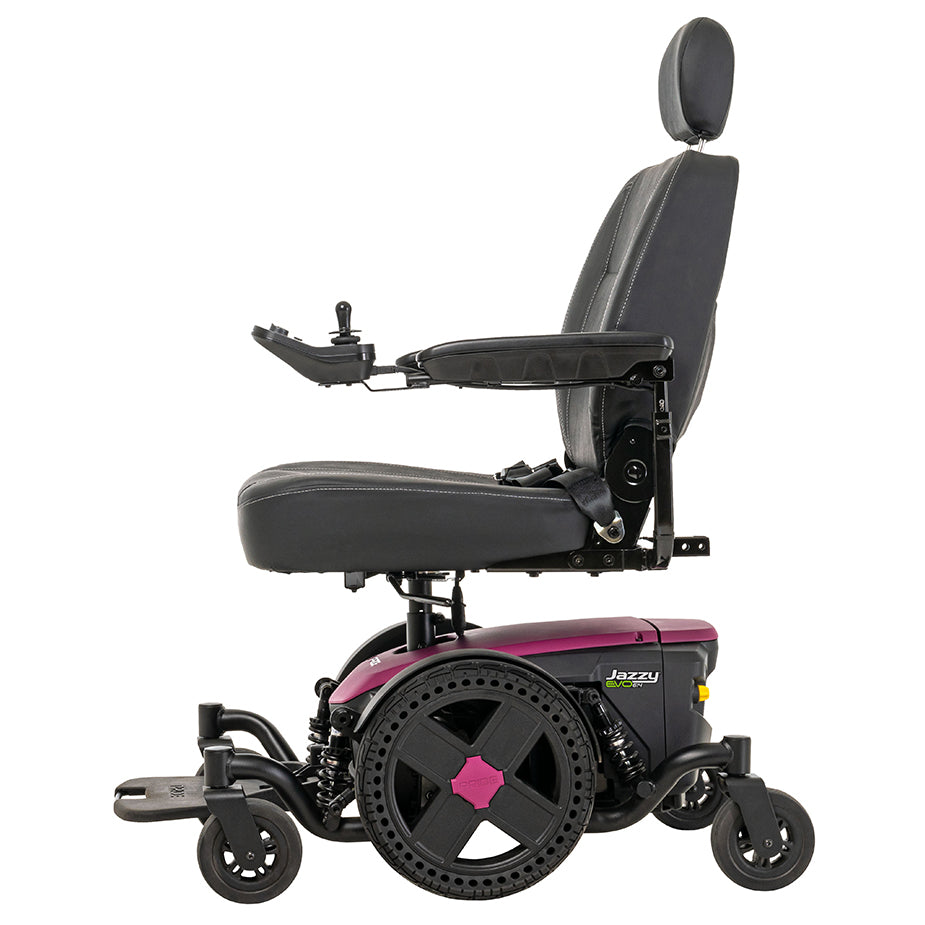

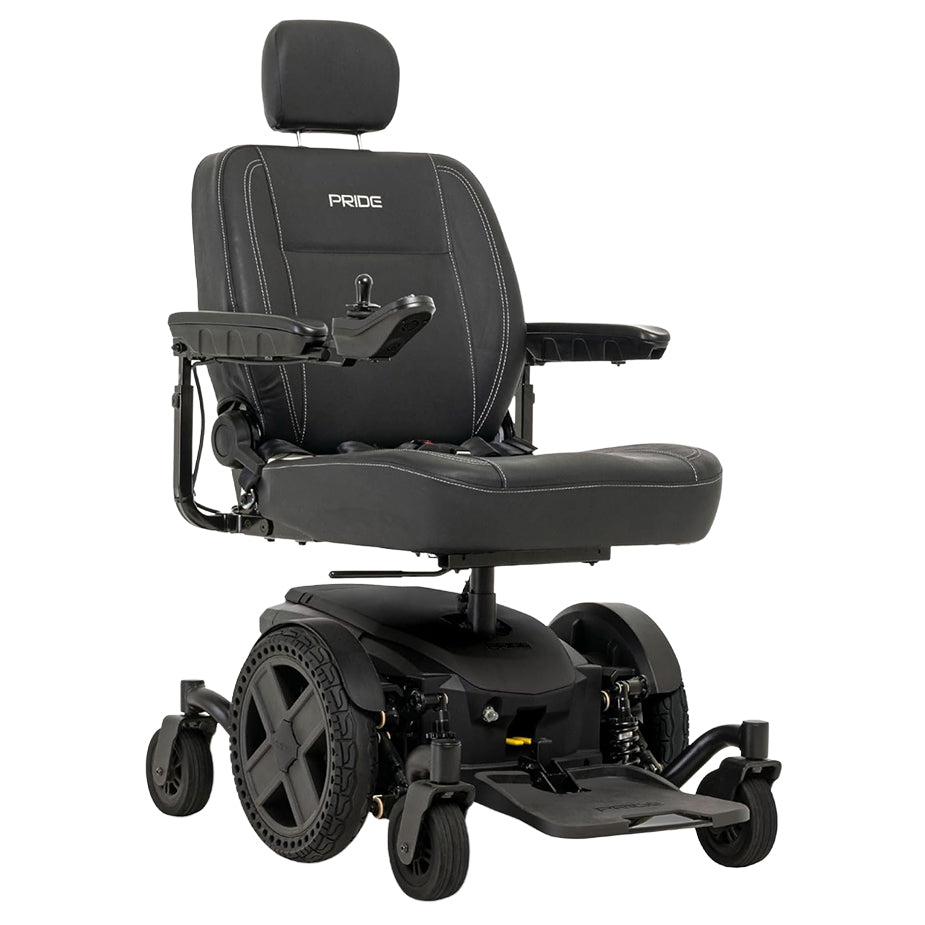

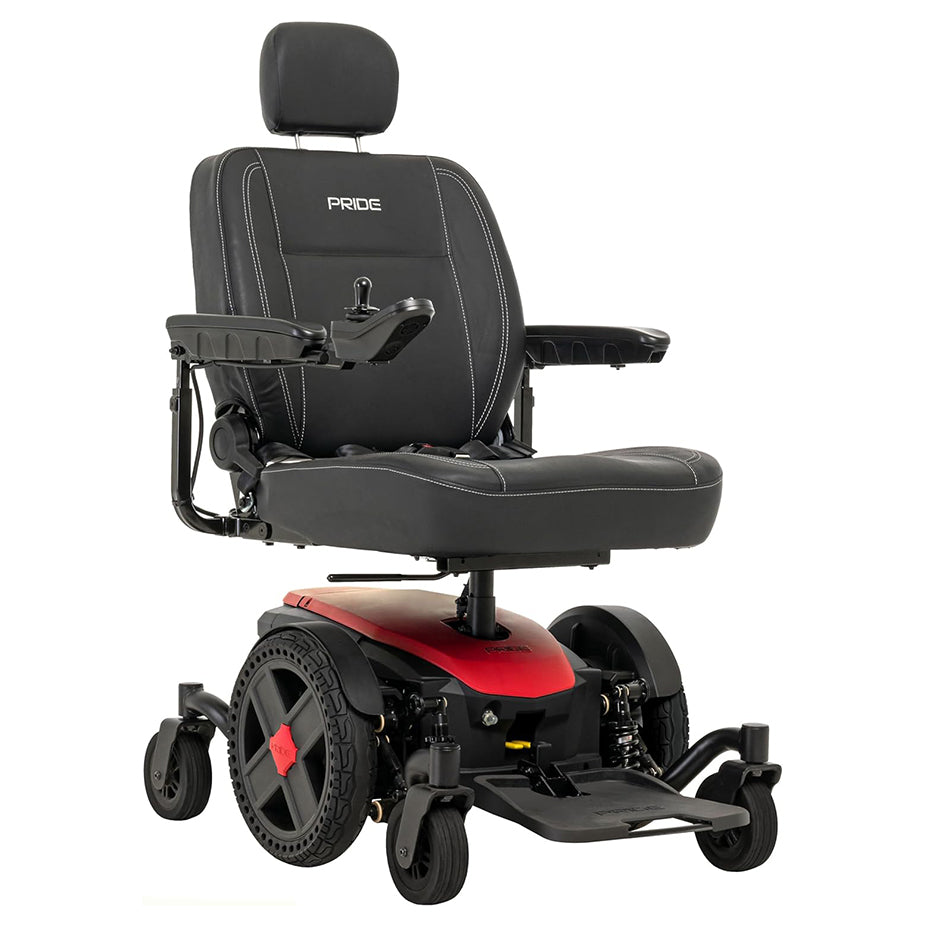

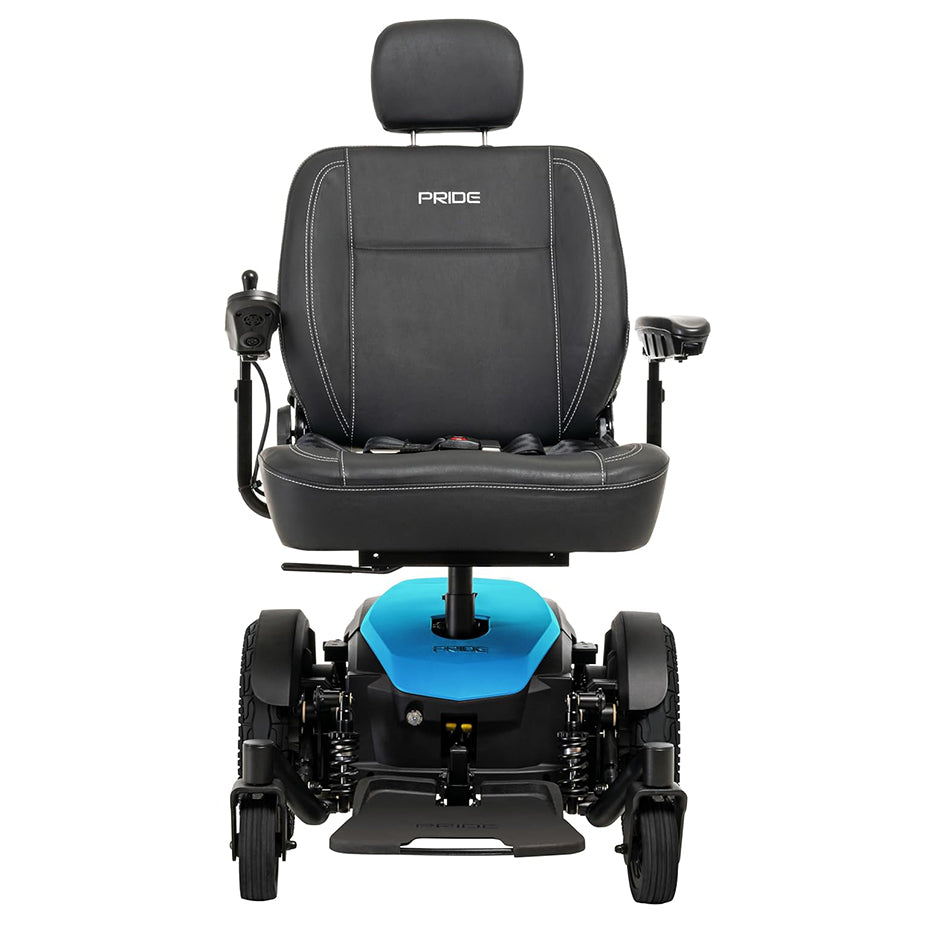

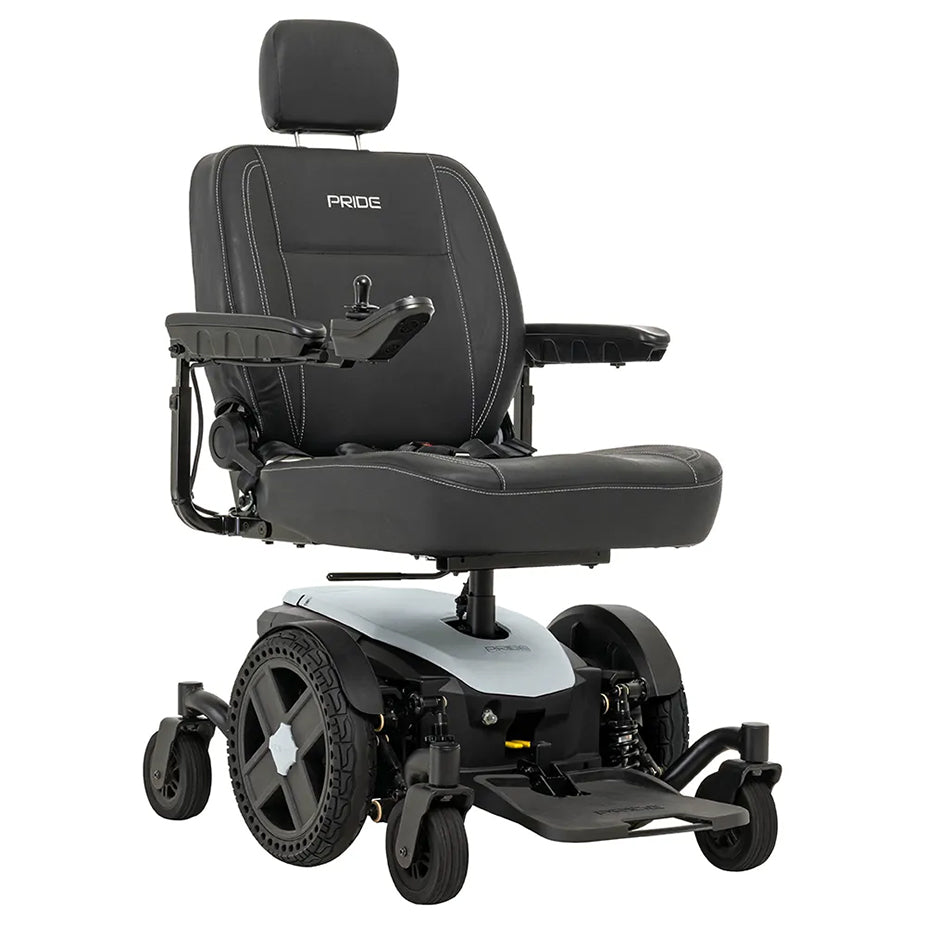

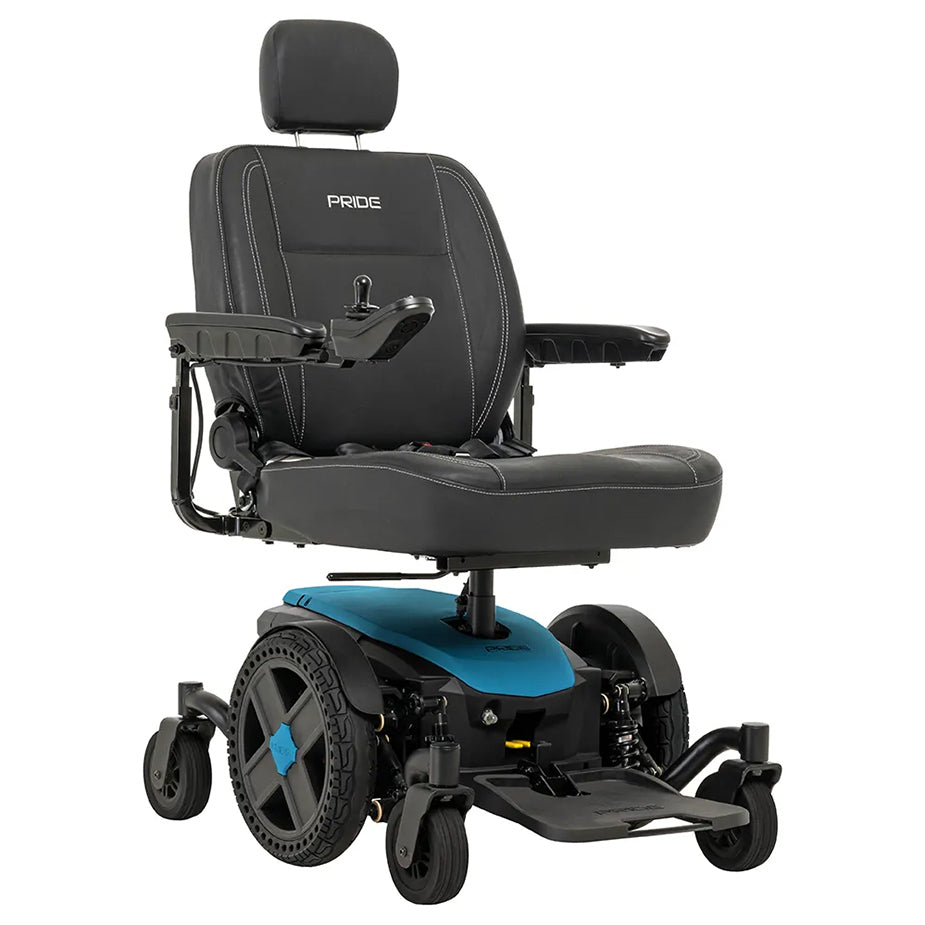

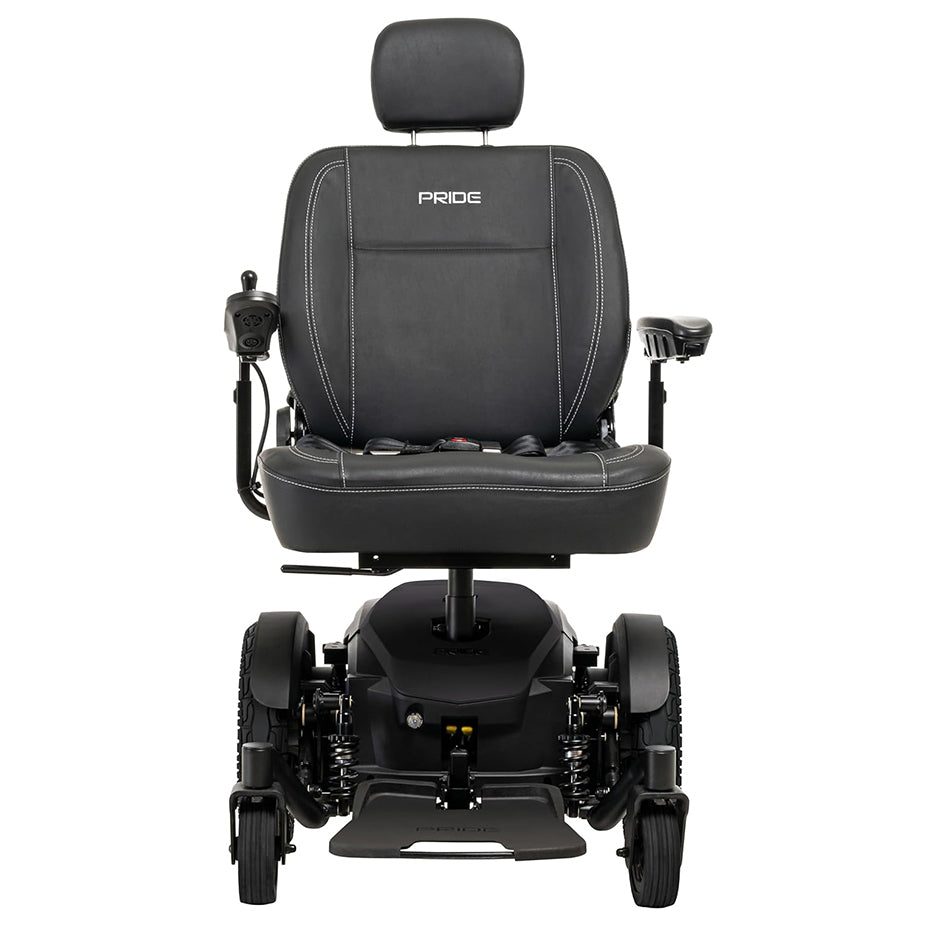

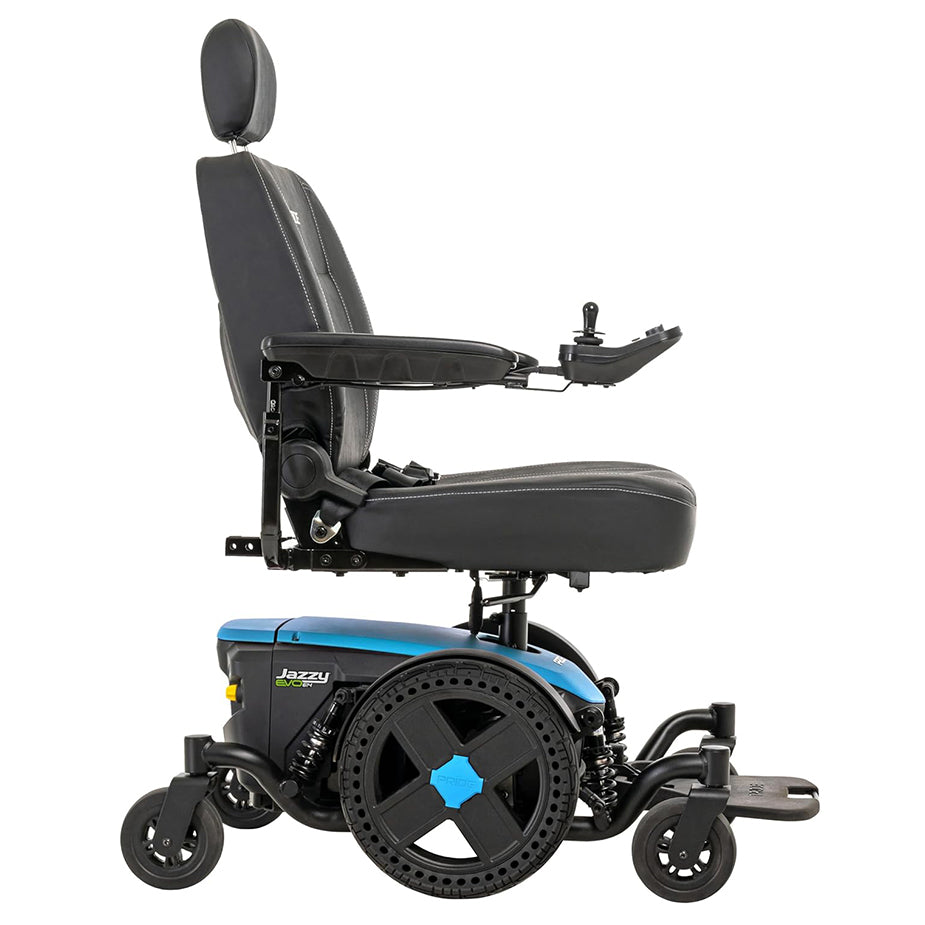

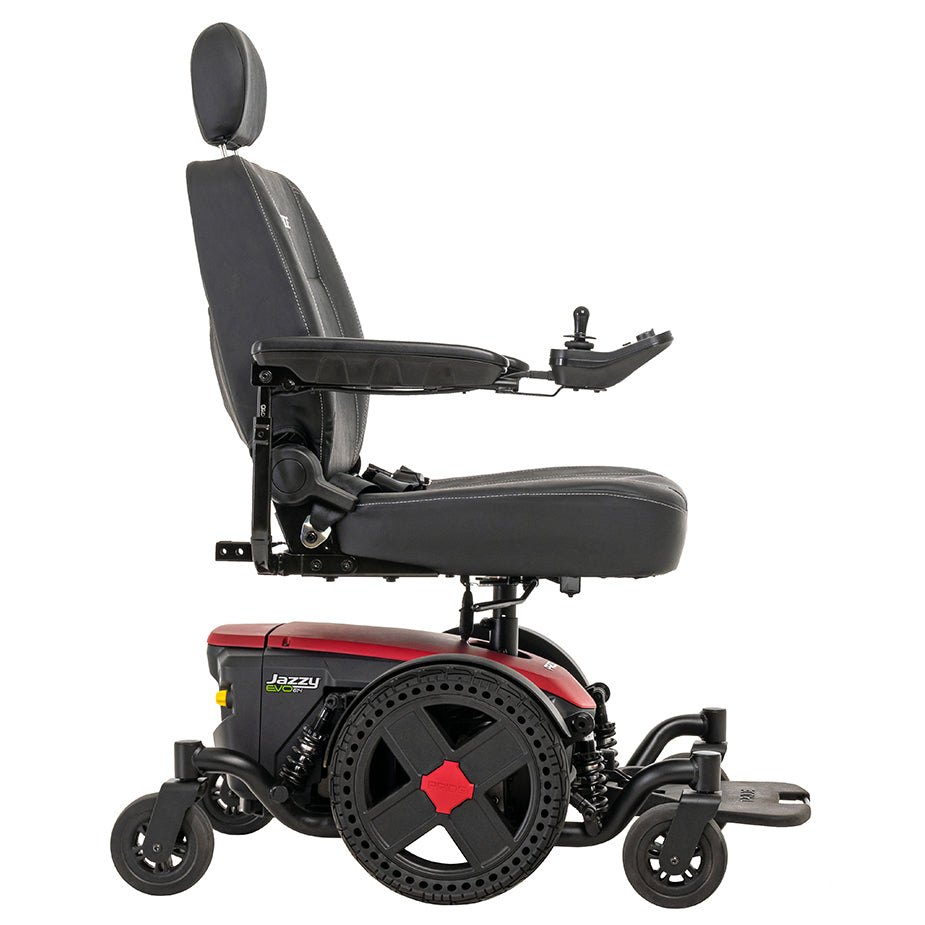

Jazzy EVO 614
The Jazzy EVO 614 is a mid-wheel drive power wheelchair designed for users who want a stable ride with higher weight capacity and compact indoor handling. Pride lists a 450 lb weight capacity, speeds up to 4 mph, and a per-charge range of up to 21 miles.
Why We Recommend Jazzy EVO 614
The EVO 614 is built for users who need more capacity than a standard mid-wheel drive power wheelchair without moving into a full heavy-duty base. Pride pairs a 450 lb capacity with Active-Trac (ATX) suspension and a 22 inch turning radius, which balances stability, traction, and maneuverability.
Mid-Wheel Drive Stability and Control
- Drivetrain: two motor, in-line, mid-wheel drive
- Turning radius: 22 inches
- Overall width: 24 inches
Pride classifies the Jazzy EVO 614 as a mid-wheel drive power wheelchair. The turning radius supports tight indoor navigation while maintaining a wider base for added stability.
Performance and Range
- Maximum speed: up to 4 mph
- Per-charge range: up to 21 miles
- Braking system: regenerative and electro-mechanical
Pride’s published speed and range values are based on standardized testing and vary with user weight, terrain, battery condition, and driving habits.
Suspension, Wheels, and Tires
- Suspension type: Active-Trac (ATX)
- Drive wheels: 13 inch solid
- Front wheels: 5 inch solid
- Rear wheels: 5 inch solid
Active-Trac (ATX) suspension keeps all six wheels engaged with the ground for improved traction over thresholds and uneven surfaces.
Seating and Fit Options
- High-back seat sizes: 18"x18" to 20", 20"x20" to 22"
- Seat-to-floor height range: 19.75" to 21.25"
- Seat weight: 54 lbs
The EVO 614 supports larger seating sizes than the EVO 613 series, aligning with its higher weight capacity.
Battery and Charging System
- Batteries required: (2) 12-volt, U-1
- Battery charger: 3.5A, off-board
- Battery weight: 23.5 lbs each
Pride lists dual U-1 batteries and an off-board charger as standard for the Jazzy EVO 614.
Who This Power Wheelchair Is Best For
This power wheelchair is best for users who need a higher 450 lb capacity, want mid-wheel drive maneuverability, and prefer a stable ride for daily indoor and outdoor use.
What to Expect When It Arrives
Expect a mid-wheel drive power wheelchair with a high-back seat and two U-1 batteries. The chair ships ready for setup, and batteries should be fully charged using the included off-board charger before first use.
Model & Performance
| Model | Jazzy EVO 614 |
|---|---|
| Weight Capacity | 450 lbs |
| Maximum Speed | Up to 4 mph |
| Per-Charge Range | Up to 21 miles |
| Turning Radius | 22 in |
| Ground Clearance | 3 in at motor bracket |
| Drivetrain | Two motor, in-line, mid-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Active-Trac (ATX) |

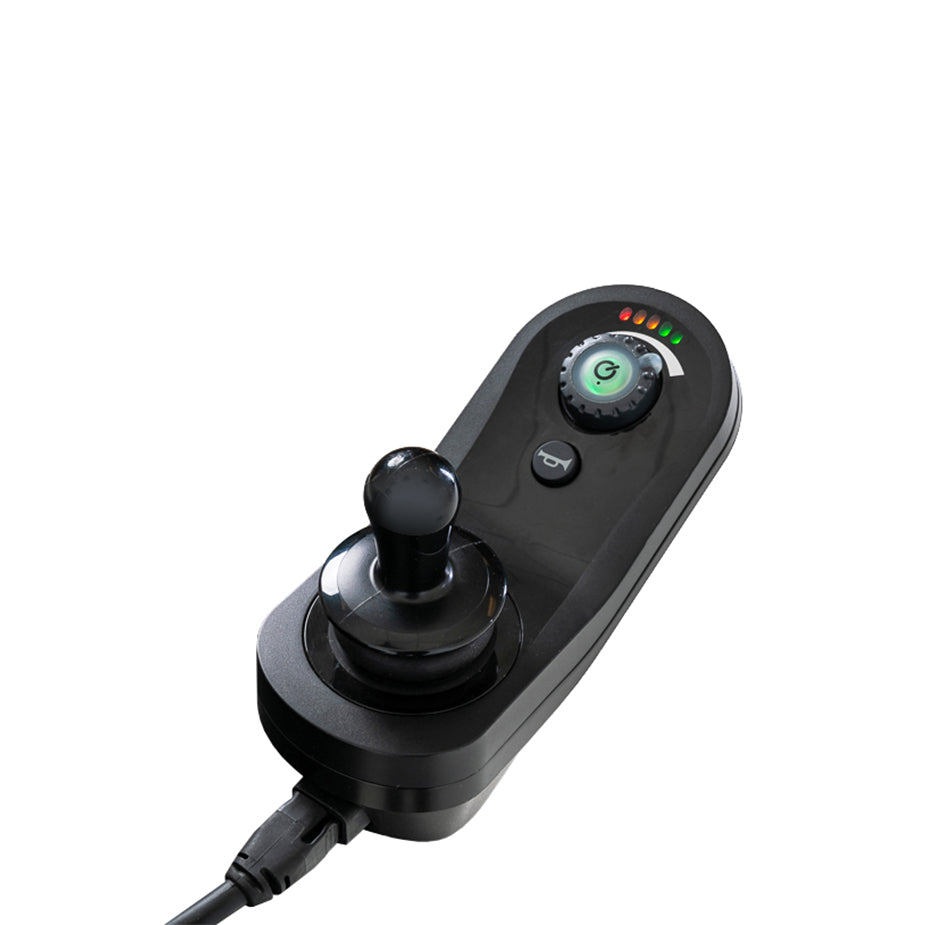

| Standard Electronics | 40A, PG GC3 |
| HCPCS Code | Group 2: Standard (K0822/K0823) |
Size & Dimensions
| Overall Width | 24 in |
|---|---|
| Overall Length | 41 in with footplate, 35 in without footplate |
Seating
| High-Back Seat Sizes | 18"x18"-20", 20"x20"-22" |
|---|---|
| Seat-to-Floor Height Range | 19.75 in to 21.25 in |
| Seat Weight | 54 lbs |
Weight & Battery
| Battery Requirements | (2) 12-volt, U-1 |
|---|---|
| Battery Weight | 23.5 lbs each |
| Battery Charger | 3.5A, off-board |
| Weight of Heaviest Piece | 94 lbs (base) |
| Total Weight | 195 lbs |
| Front Wheels | 5 in solid |
| Drive Wheels | 13 in solid |
| Rear Wheels | 5 in solid |
Warranty
| Frame | 5-year limited |
|---|---|
| Drivetrain | 13-month limited |
| Electronics | 13-month limited |
| Batteries | 13-month limited |
