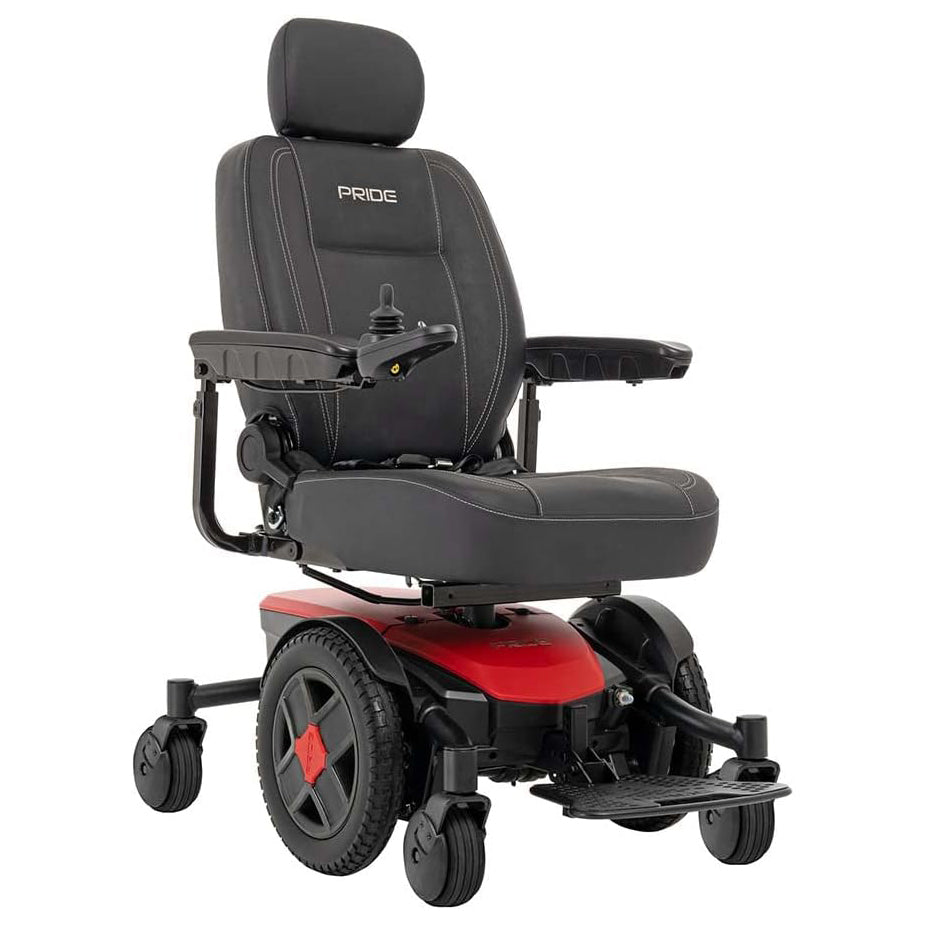

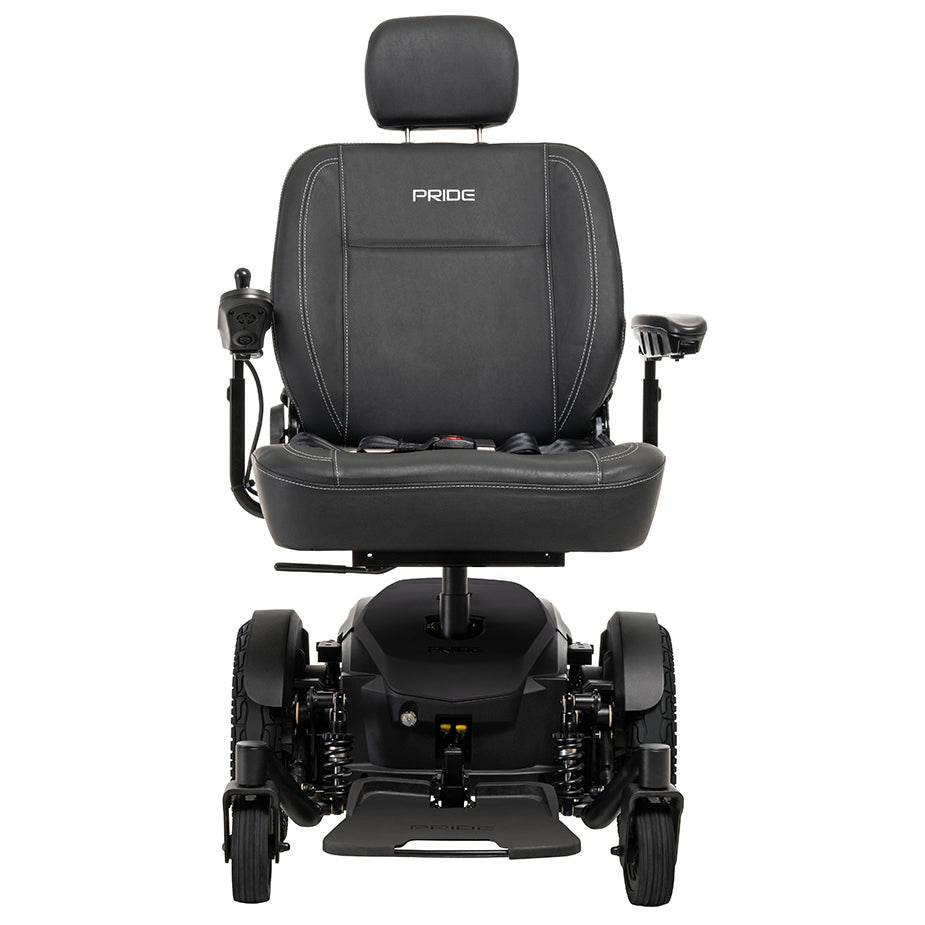

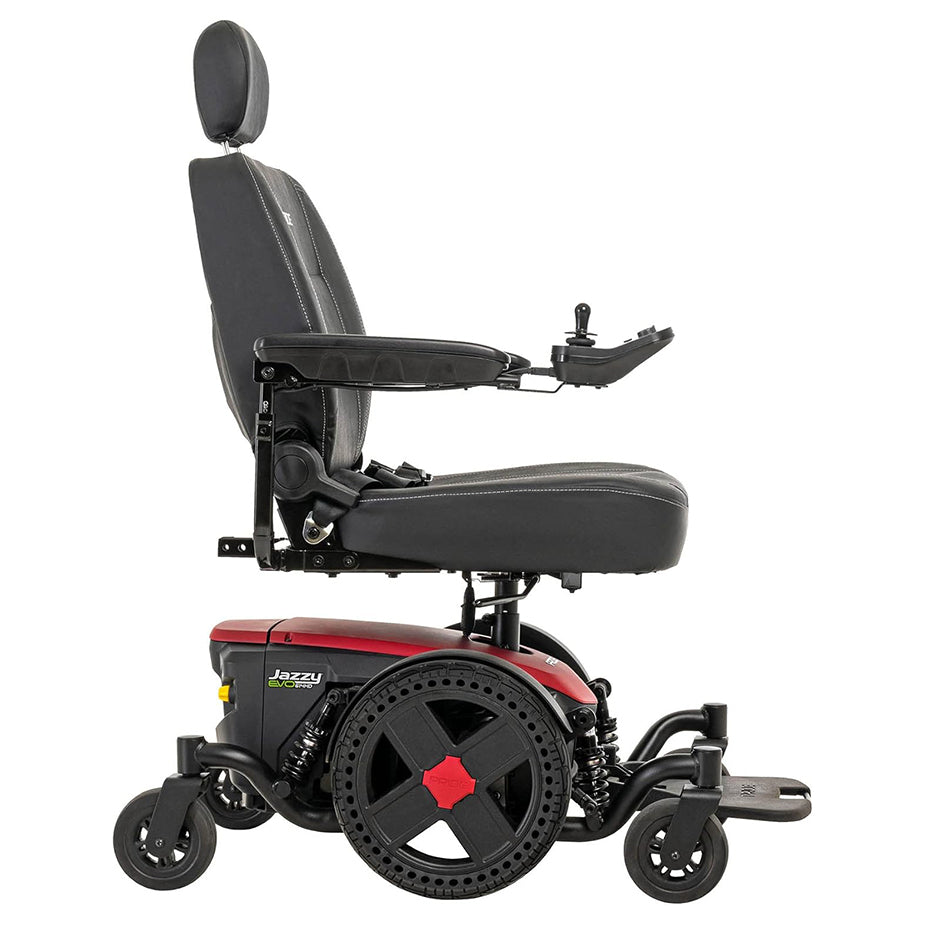

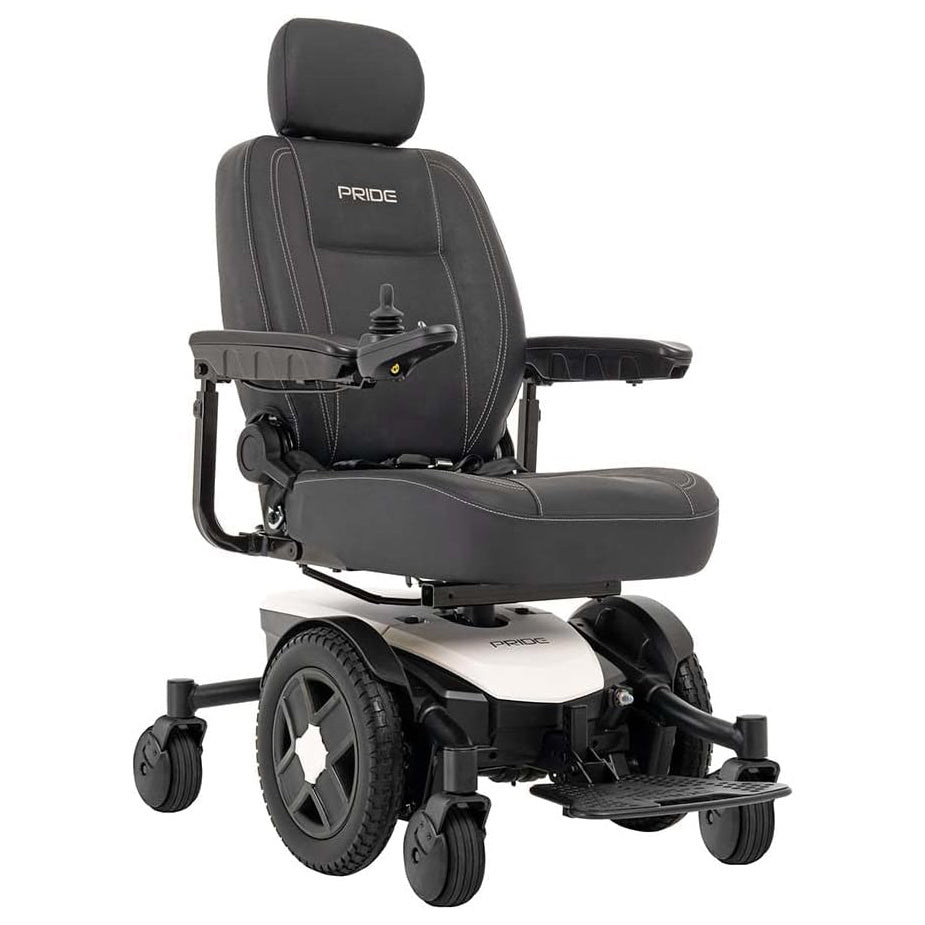

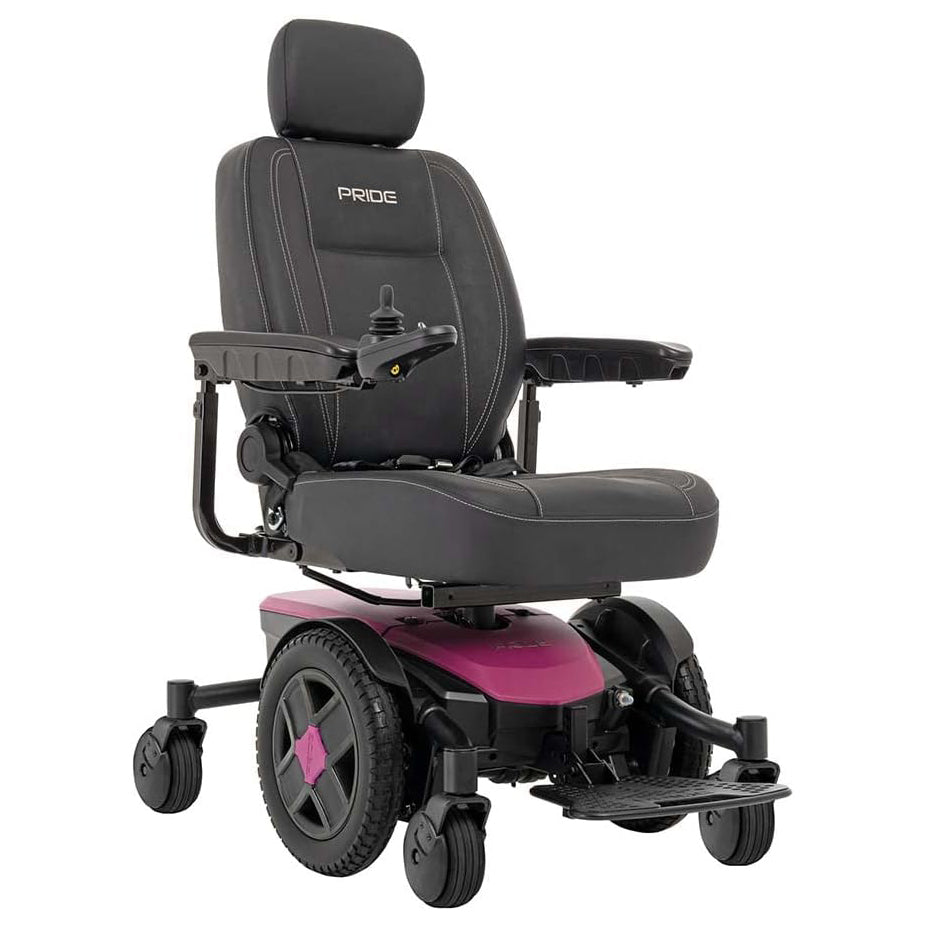

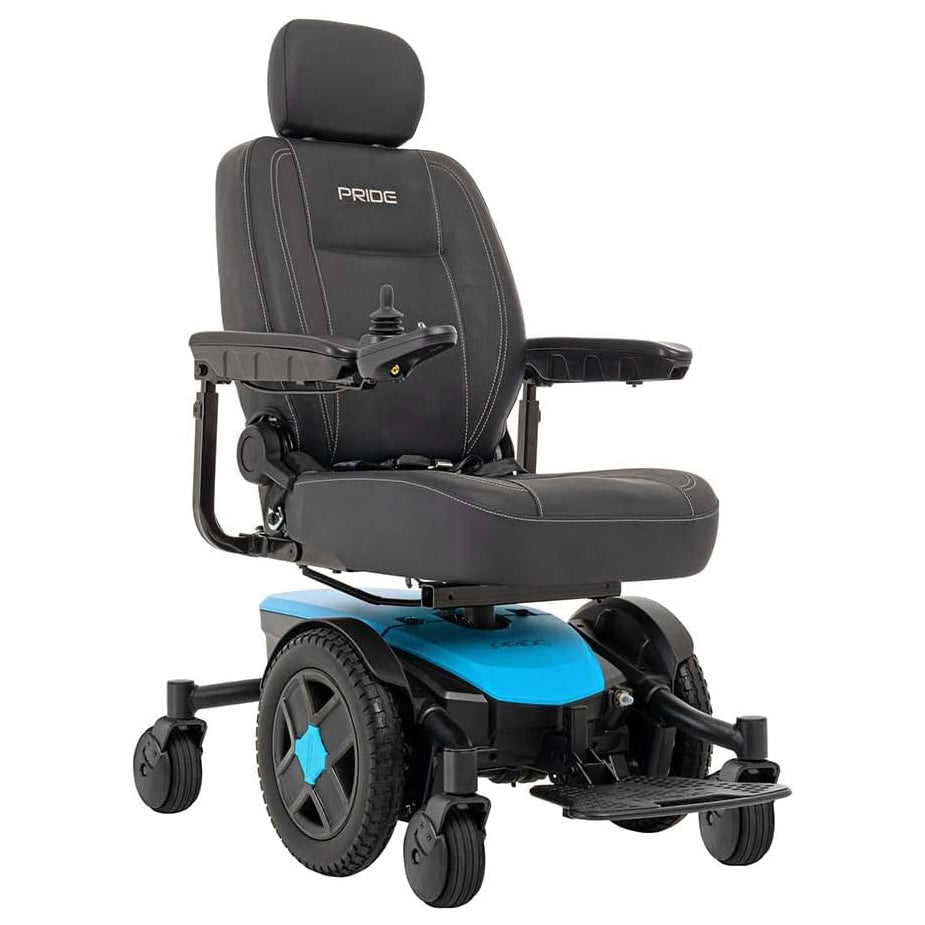

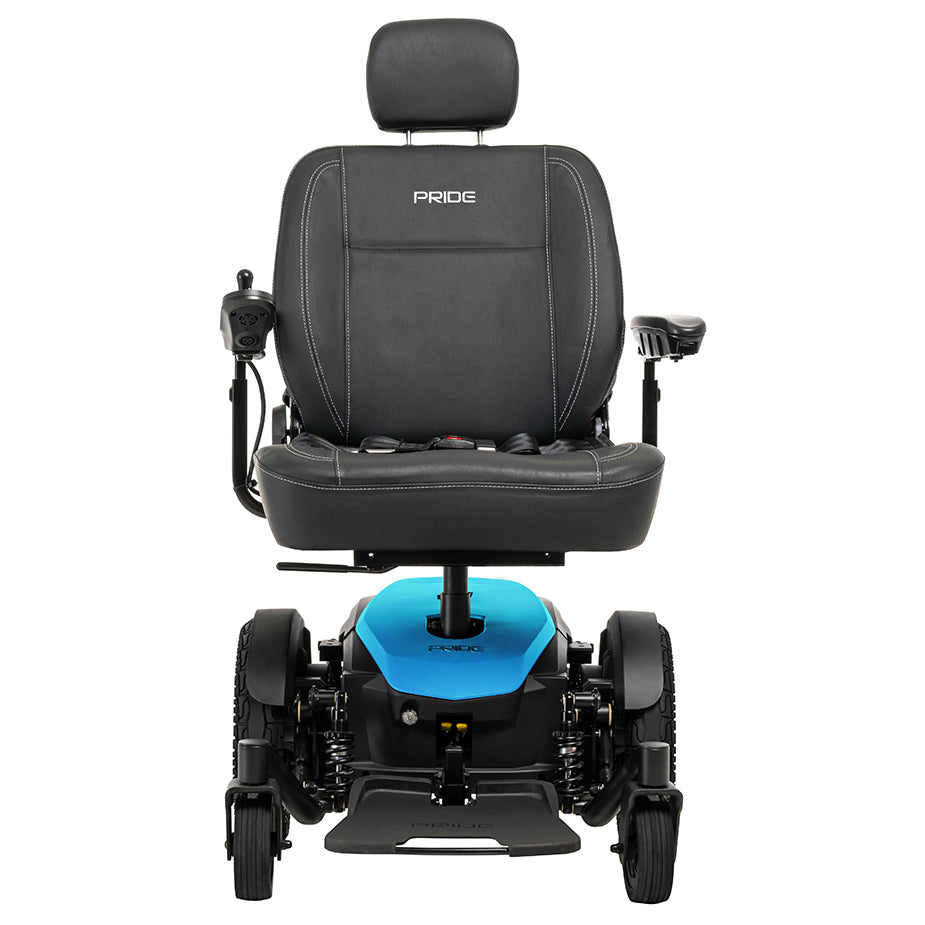

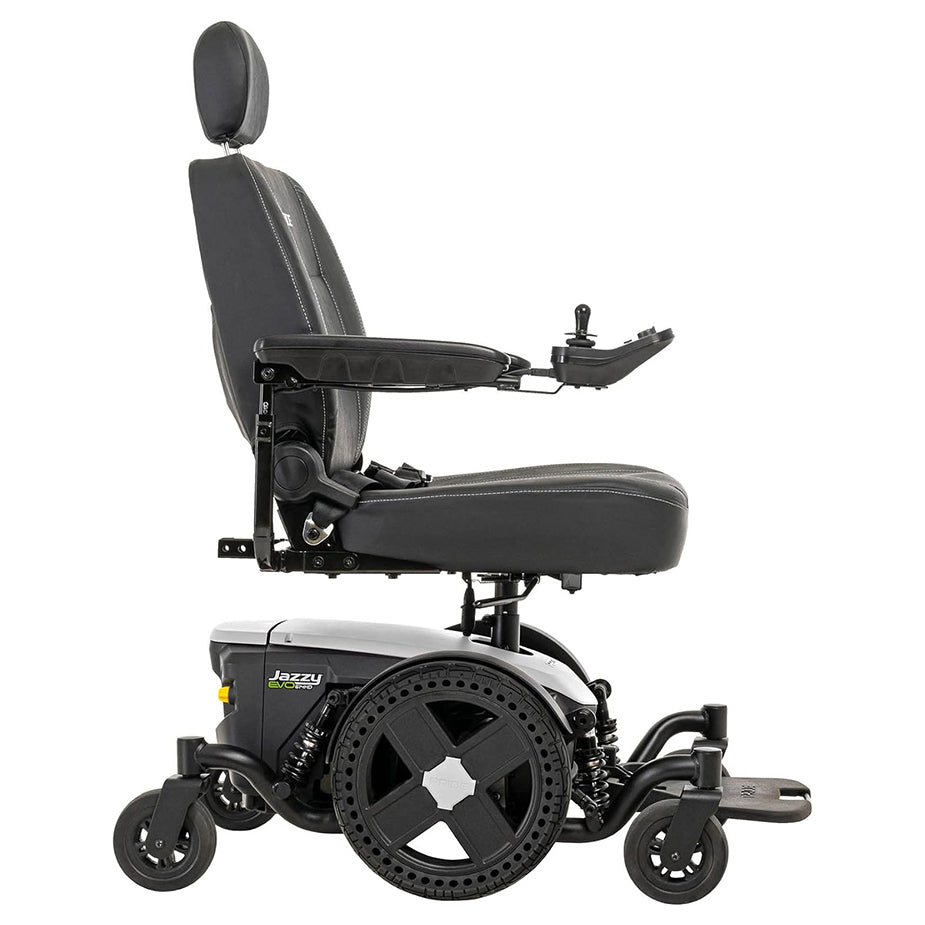

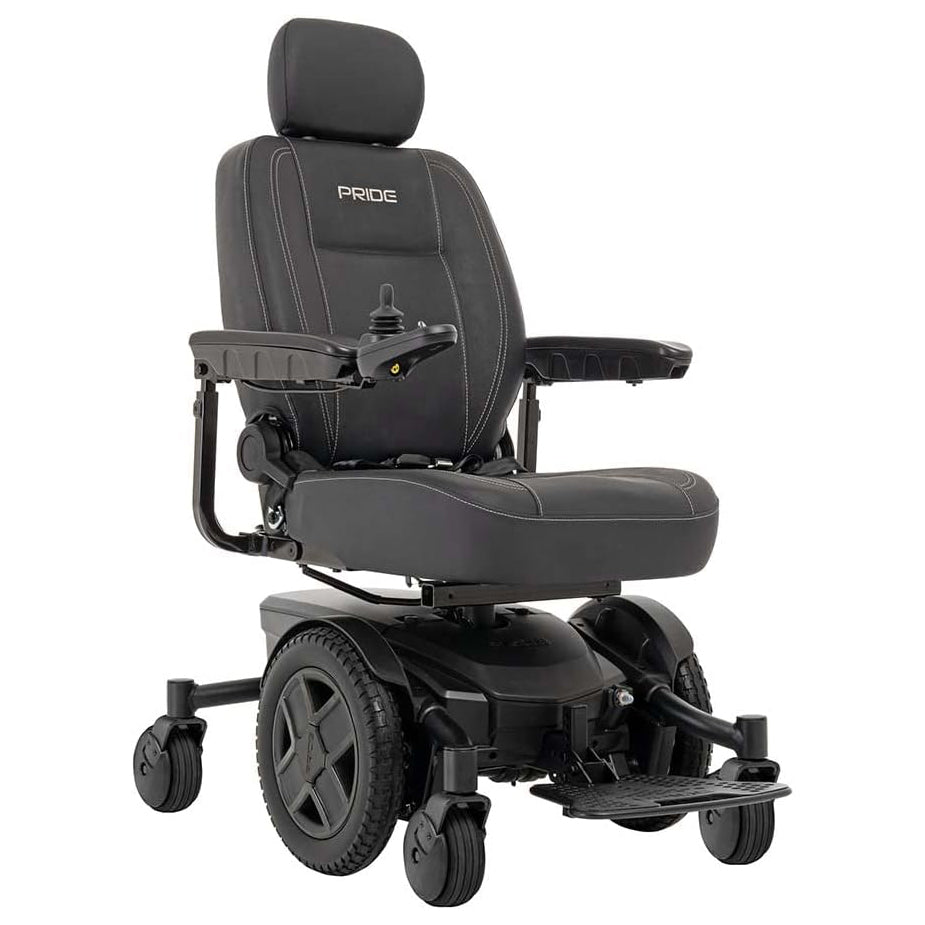

Jazz EVO 614HD
The Jazzy EVO 614HD is a heavy-duty mid-wheel drive power wheelchair with a 450 lb weight capacity. Pride lists speeds up to 4.88 mph, a 22 inch turning radius, and a tested range of up to 13 miles per charge at 450 lbs, or up to 21.5 miles per charge at 200 lbs.
Why We Recommend Jazzy EVO 614HD
If you need a higher-capacity power wheelchair but still want tight indoor maneuvering, the EVO 614HD combines a 450 lb rating with a compact turning radius. Pride also lists full independent front and rear Active-Trac (ATX) suspension and large 13.75 inch perforated drive tires, which are practical for stability and threshold performance.
Heavy-Duty Capacity With Tight Turning
- Weight capacity: 450 lbs
- Turning radius: 22 inches
- Overall width: 25.4 inches
This power wheelchair is designed for higher-capacity users who still need a chair that can handle indoor turns and common household layouts.
Drive System, Speed, and Braking
- Drivetrain: two in-line HD motors, mid-wheel drive
- Maximum speed: up to 4.88 mph
- Braking system: regenerative and electromechanical
Pride lists a mid-wheel drive system with regenerative and electromechanical braking. Actual performance varies with conditions and setup.
Suspension and Wheels
- Suspension type: full independent front and rear Active-Trac (ATX) suspension
- Drive wheels: 13.75 inch perforated
- Front casters: 6 inch
- Rear casters: 6 inch
The EVO 614HD uses six-wheel stability with full independent front and rear suspension for improved contact over thresholds and uneven surfaces.
Battery System and Real-World Range
- Battery requirements: (2) NF-22
- Battery charger: 5 amp, off-board
- Per-charge range: up to 13 miles at 450 lbs, up to 21.5 miles at 200 lbs
Pride lists the range as a tested specification that varies based on user weight, terrain, battery condition, and tire pressure. The published range depends on the load used in testing.
Seating and Fit
- Maximum seat size: up to 24 inch wide x 24 inch deep
- High-back seat sizes: 18 x 18-20, 20 x 18-20, 22 x 20-22, 24 x 22-24
- Seat-to-floor range: 22 to 24 inches
Pride lists larger seating options on the EVO 614HD to match its heavy-duty classification and higher capacity rating.
Who This Power Wheelchair Is Best For
This power wheelchair is best for users who need a 450 lb capacity and want mid-wheel drive maneuverability for indoor use, with added stability and suspension for everyday indoor and outdoor driving.
What to Expect When It Arrives
Expect a heavy-duty mid-wheel drive power wheelchair with a high-back seat, two NF-22 batteries, and an off-board charger. Charge the batteries fully before first use. Overall dimensions and seat fit depend on the seating configuration selected.
Model & Performance
| Model | Jazzy EVO 614HD |
|---|---|
| Weight Capacity | 450 lbs |
| Maximum Speed | Up to 4.88 mph |
| Turning Radius | 22 in |
| Ground Clearance | 3 in |
| Drivetrain | Two in-line HD motors |
| Braking System | Regenerative and electromechanical |
| Suspension Type | Full independent front and rear Active-Trac (ATX) suspension |
| Standard Electronics | 60A, Dynamic LiNX |
| HCPCS Code | Group 2: Heavy-Duty (K0824/K0825) |
Size & Dimensions
| Overall Width | 25.4 in |
|---|---|
| Overall Length | 40.5 in |
| Front Casters | 6 in |
| Drive Wheels | 13.75 in perforated |
| Rear Casters | 6 in |
Seating
| High-Back Seat Sizes | 18 x 18-20, 20 x 18-20, 22 x 20-22, 24 x 22-24 |
|---|---|
| Maximum Seat Size | 24 in W x 24 in D |
| Seat-to-Floor Range | 22 in to 24 in |
| Seat Weight | 57.8 lbs |
| Power Elevating Seat | NA |
Weight & Battery
| Battery Requirements | (2) NF-22 |
|---|---|
| Battery Weight | 36 lbs each |
| Battery Charger | 5 amp, off-board |
| Per-Charge Range | 13 miles at 450 lbs, 21.5 miles at 200 lbs |
| Weight of Heaviest Piece | 125.7 lbs (base) |
| Total Weight | 255.5 lbs with batteries and seat |
Warranty
| Frame | 5-year limited |
|---|---|
| Drivetrain | 13-month limited |
| Electronics | 13-month limited |
| Batteries | 13-month limited |
